Embedded system designers and product developers constantly seek cost-effective high-performance SoCs for edge devices smart displays and media players. The Rockchip RK3576 has emerged as a popular mid-range processor option and the RK3576 board ecosystem covers evaluation boards core boards single board computers and Android TV box hardware. This guide breaks down the core specifications available board variants common use cases and critical selection criteria for anyone planning to integrate an RK3576 board into prototypes or mass production.
What Is an RK3576 Board
An RK3576 board is a hardware carrier built around Rockchip’s RK3576 system-on-chip. The RK3576 is a quad-core ARM processor optimized for multimedia decoding low-power edge computing and embedded display applications. Unlike high-end RK3588 chips focused on heavy AI NPU workloads the RK3576 balances video performance power draw and bill-of-material cost making it ideal for commercial display and media-focused embedded products.
There are multiple types of hardware within the RK3576 board family. An RK3576 development board also called dev board or evaluation board is designed for engineers to test software drivers and peripheral interfaces before productization. RK3576 core boards on the other hand are compact SOM system-on-module units that can be soldered or plugged into custom baseboards for end-product mass manufacturing. You can also find RK3576 single board computers and RK3576 Android boards which come pre-loaded with Android firmware and ready for rapid testing. Some manufacturers also use the RK3576 chip inside RK3576 TV box products for home and commercial media playback.
RK3576 Board Core Specifications Overview
The table below summarizes the main hardware features of the Rockchip RK3576 SoC which applies to most RK3576 evaluation and core boards on the market.
| Item | Specification |
|---|---|
| CPU | Quad-core Cortex-A55 |
| GPU | Arm Mali-G52 MC2 |
| Video Decoding | Support 8K at 30fps H.265 4K at 60fps multiple formats |
| Display Output | MIPI LVDS HDMI eDP interfaces |
| RAM | LPDDR4X configurable from 2GB to 8GB |
| Storage | eMMC SPI Flash microSD card |
| Operating Systems | Android Linux Debian Buildroot |
| Typical Power Profile | Low power passive cooling available for many designs |
Not every RK3576 board shares the exact same peripheral layout. Evaluation boards tend to expose more headers debug ports and expansion connectors while core boards minimize footprint and only bring out essential signal pins for custom baseboard integration. Always confirm the schematic and pin definition before starting hardware design.
Common Types of RK3576 Boards
RK3576 Evaluation Development Board
The RK3576 evaluation board or dev board is the best starting point for software teams. Manufacturers pre-solder all peripherals including Ethernet USB audio jacks multiple display ports camera interfaces and debug serial ports. Engineers can boot Android or Linux images directly test video decoding performance validate touch screens and write device drivers without designing a custom PCB. These boards are mainly used for proof-of-concept and early-stage software validation.

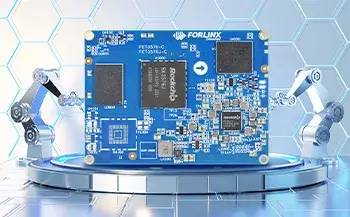

RK3576 Core Board SOM
RK3576 core boards are compact modules containing the RK3576 SoC RAM and eMMC storage. They rely on a user-designed baseboard to provide power connectors and external peripherals. Core boards are the preferred option for mass-produced embedded products because they decouple the complex high-speed memory routing from the application-specific baseboard design. This reduces PCB risk and shortens product development cycles.
RK3576 Single Board Computer and Android Board
RK3576 single board computers are fully integrated boards that combine the SOM and baseboard on one PCB similar to popular hobbyist SBCs. Most RK3576 Android boards in this category ship with pre-built Android firmware which saves developers a large amount of porting work. These boards are widely used for digital signage smart kiosks and simple edge display devices.
RK3576 TV Box
RK3576 TV box products are consumer-focused media players built on the same SoC. They prioritize video decoding performance and run customized Android TV firmware. While they are cheap and easy to obtain they usually lack industrial-grade reliability long-term software support and exposed GPIO headers so they are rarely suitable for commercial embedded product development.
Typical Use Cases for the RK3576 Board
The strength of the RK3576 lies in its robust multimedia engine and moderate power consumption. One major application is commercial digital signage such as supermarket advertising screens elevator displays and restaurant menu boards. The chip’s 8K decoding capability handles high-resolution video content smoothly while keeping thermal management simple.
Smart kiosks and human-machine interfaces are another common fit. RK3576 Android boards can run touch-based UI applications connect to peripherals like scanners and card readers and operate stably for long hours. Many developers also use RK3576 boards for smart home display panels vehicle secondary displays and lightweight media gateway projects.
It is important to set realistic expectations. The RK3576 does not include a powerful dedicated NPU for heavy AI inference workloads. If your project requires large computer vision models or high TOPS AI processing higher-tier chips such as RK3588 will be a better choice.
FAQ About RK3576 Board
What is the difference between an RK3576 dev board and an RK3576 core board
An RK3576 development board or evaluation board is a complete platform for software testing and debugging with all peripherals brought out. An RK3576 core board is a compact system-on-module that only contains the SoC RAM and storage meant to be mounted onto your custom baseboard for mass production.
Can I run Android on an RK3576 board
Yes. Most commercial RK3576 Android boards and evaluation boards provide official Android BSP board support packages. Linux distributions such as Debian and Buildroot are also available for many RK3576 board variants.
Is the RK3576 board suitable for AI vision projects
The RK3576 has limited AI acceleration. It can handle lightweight simple vision tasks but it is not designed for complex high-resolution object detection. For demanding edge AI projects consider upgrading to RK3588 hardware.
Can I use an RK3576 TV box as an embedded development platform
Technically you can flash custom firmware on some RK3576 TV boxes but they usually do not provide open schematics stable BSP support or accessible GPIOs. They are recommended for media playback only not commercial product development.
What documents do I need when selecting an RK3576 core board for mass production
You should request the datasheet schematic pinout table BSP release plan thermal test report and long-term supply schedule from the manufacturer. These materials help you evaluate software maintenance and component lifecycle risks.
Conclusion
The RK3576 board family fills a valuable niche for embedded projects that prioritize high-quality video decoding low power consumption and controlled material cost. Whether you pick an RK3576 evaluation board for early software testing an RK3576 core board for product mass production or an RK3576 Android board for fast prototyping it is critical to match the board type to your project goals.
While RK3576 excels in digital signage smart display and media player applications developers should recognize its limitations for heavy AI computing. By distinguishing between dev boards core SOM modules single board computers and consumer RK3576 TV boxes hardware teams can avoid wrong hardware selection and reduce development delays.
