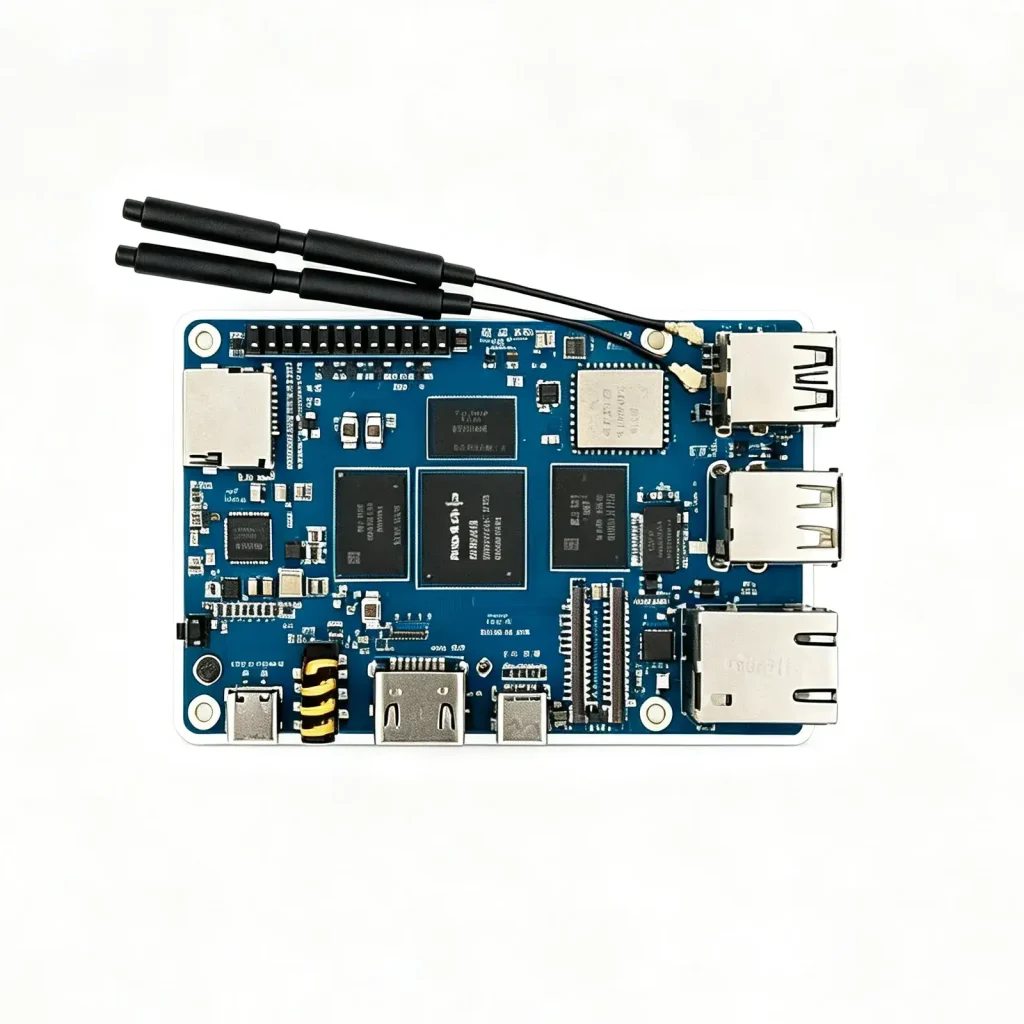

YKR-3588S
| CPU | Rockchip RK3588S |
| Architecture | Octa-core ARM Cortex-A76 (Quad-core) + Cortex-A55 (Quad-core) |
| Clock Frequency | Cortex-A76: up to 2.4 GHzCortex-A55: up to 1.8 GHz |
| Memory | 1 GB / 2 GB / 4 GB DDR44 GB / 8 GB LPDDR4X |
| Storage (ROM) | 8 GB / 16 GB / 32 GB / 64 GB / 128 GB / 256 GB eMMC |
| Operating System | Android 12, Linux, Ubuntu, Debian 11, OpenHarmony 4.1 |
Rich Interfaces

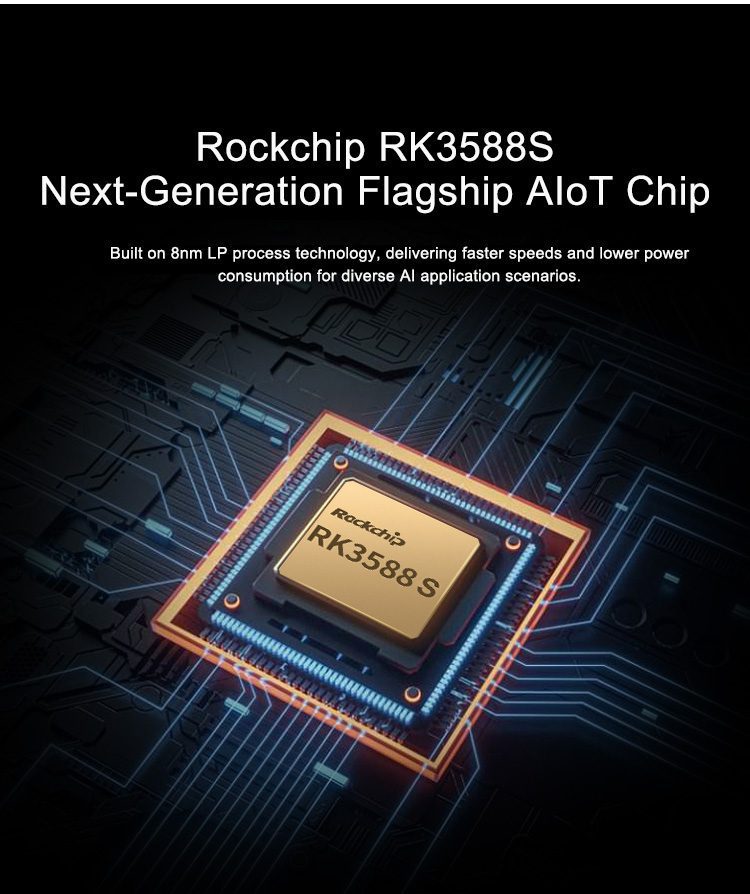

The YKR-3588S (4GB/8GB/16GB) developed by Yiker features Rockchip’s next-generation RK3588S octa-core 64-bit processor. Specifically, it incorporates four A76 cores and four A55 cores built on an 8nm process, with a maximum clock speed of 2.4GHz. It integrates an ARM Mali-G610 MP4 GPU, embedded with high-performance 3D and 2D graphics acceleration modules, and an integrated AI accelerator NPU delivering up to 6 TOPS computational power. It offers 4GB/8GB/16GB (LPDDR4/4X) RAM and 32GB/64GB/128GB/256GB eMMC storage, supports dual-band Wi-Fi 6 and Bluetooth 5.3, and boasts 8K display processing capability.
The YKR-3588S (4GB/8GB/16GB) offers extensive connectivity options including HDMI output, Type-C, USB 3.0, USB 2.0, RJ45 Gigabit Ethernet, TF card slot, 3.5mm headphone jack, MIPI LCD interface, MIPI Camera interface, and a versatile 26-pin expansion interface. It is widely applicable in high-end tablets, edge computing, artificial intelligence, cloud computing, AR/VR, smart security, smart home, and other fields, covering various AIoT industries.
The YKR-3588S (4GB/8GB/16GB) supports the official Orangepi OS developed by Orange Pi, as well as Android 12, Debian 11, Ubuntu 22.04, Ubuntu 20.04, and other operating systems.
Product Specification:
| Category | Specification |
|---|---|
| SoC | Rockchip RK3588S |

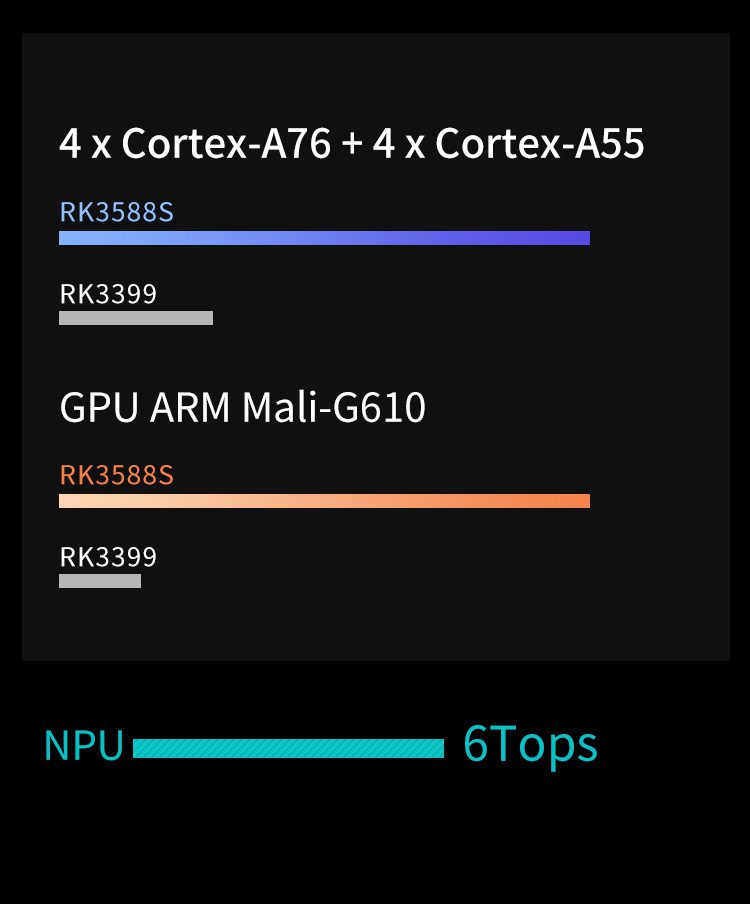

| CPU | Octa-core 64-bit ARM architecture• 4 × Cortex-A76 @ up to 2.4 GHz• 4 × Cortex-A55 @ up to 1.8 GHz |
| GPU | Integrated Mali-G610 MP4 GPUSupports OpenGL ES 1.1 / 2.0 / 3.2, Vulkan 1.2, OpenCL 2.2 |
| NPU | Integrated NPU, up to 6 TOPSSupports INT4 / INT8 / INT16 / FP16 mixed precision |
| VPU | Video decoding:• 8K @ 60 fps: H.264 / H.265 / VP9Video encoding:• 8K @ 30 fps: H.264 / H.265Supports HDRHardware-based 48 MP ISP, Dual ISP (48M + 16M) |
| PMU | RK806-1, supports dynamic voltage regulation |

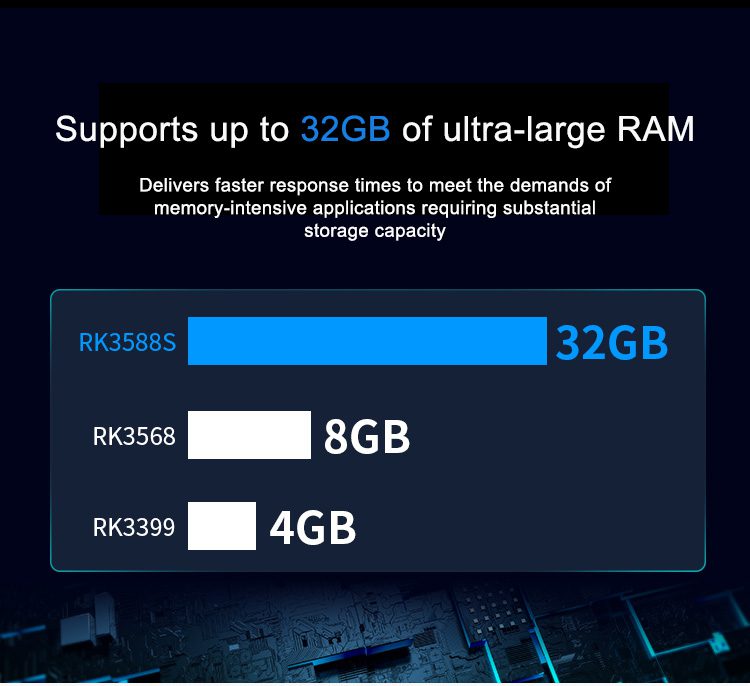

| Memory | LPDDR4 / LPDDR4X, standard 8 GBOptional: 4 GB / 8 GB / 16 GB / 32 GB |
| Storage | • Onboard eMMC 5.0, standard 32 GB (optional 16 / 64 / 128 / 256 GB)• MicroSD card slot, supports up to 256 GB expansion |
| USB | • 3 × USB 2.0 Host (2 × standard USB-A, 1 × 2.54 mm 4-pin header)• 2 × USB 3.0 Host (standard USB-A)• 1 × USB 3.0 OTG (Type-C), supports Host mode |
| Video Output | • HDMI 2.1, up to 8K @ 60 Hz• DP 1.4 (DisplayPort), up to 8K @ 30 Hz• 2 × MIPI D-PHY TX (4 lanes), up to 4K @ 60 Hz |

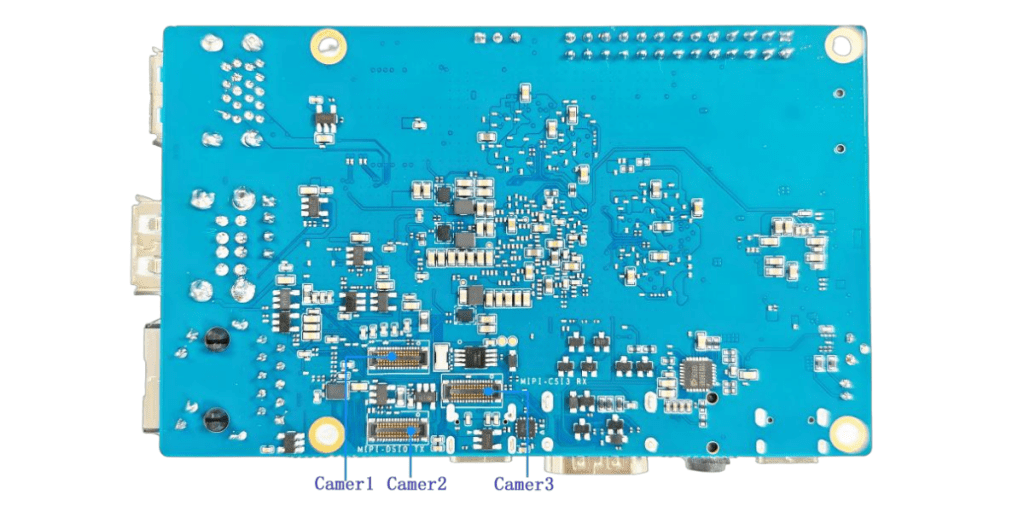

| Camera Interface | • MIPI CSI (4 lanes)• 2 × MIPI D-PHY RX (4 lanes) |
| Audio | • Audio codec: ES8388• 3.5 mm headphone jack (audio input/output)• Onboard microphone input• HDMI 2.1 eARC |

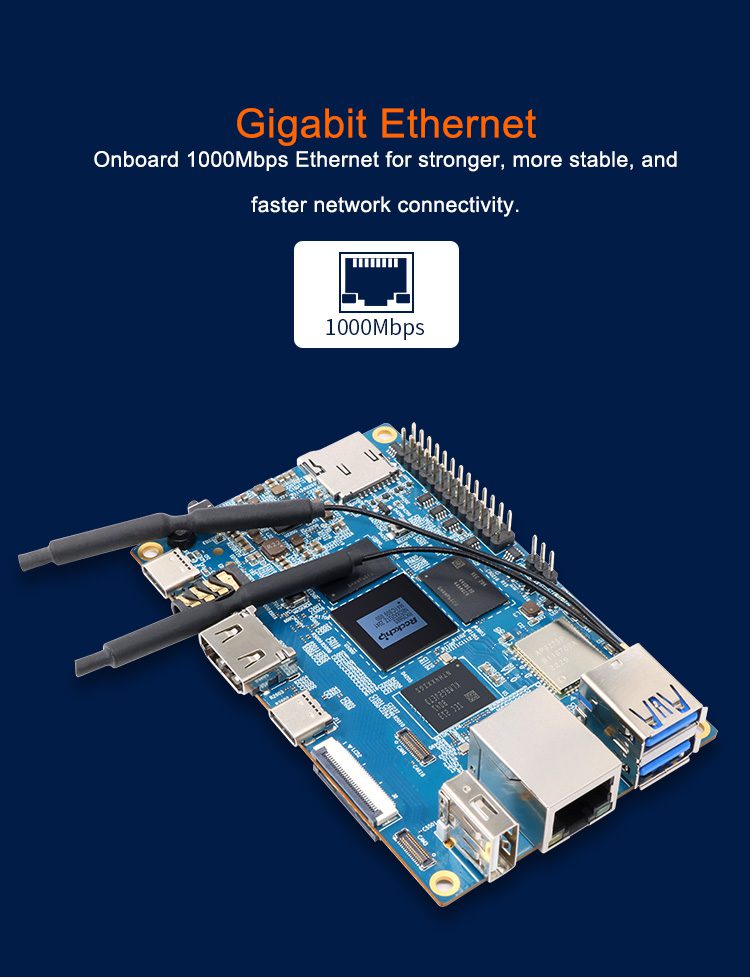

| Network | 10 / 100 / 1000 Mbps Ethernet |
| GPIO | 1 × 26-pin GPIO header (2.54 mm pitch), 13 × 2 pin layout |
| Debug Interface | 3.3 V UART debug port, baud rate 1,500,000 bps |
| LED Indicators | 2 × GPIO-controlled LEDs (SYS & LED1) |
| Buttons | RESET button, RECOVERY button, MASKROM button |
| Power Input | DC 5 V / 4 A, USB Type-C |
| Operating System | Android, Ubuntu, Debian |

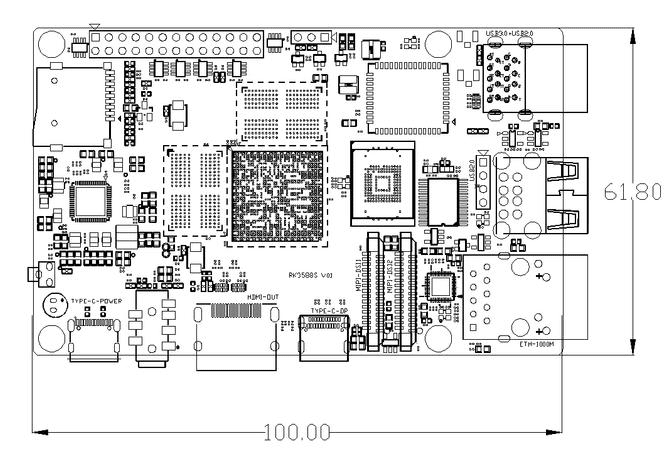

| Dimensions | 100 mm × 62 mm |
| Weight | 55 g |
| Operating Temperature | −20 °C ~ +80 °C |
