YKR-IPX3-V2(Amlogic S905X3)
| CPU | Amlogic S905X3, Quad-core ARM Cortex-A55 |
| GPU | ARM Mali-G31 MP2 |
| RAM | 4 GB |
| Storage (ROM) | 16 GB / 32 GB / 64 GB / 128 GB / 256 GB |
| Operating System | Android / Linux |
The YKR-IPX3-V2 is a powerful quad-core 64-bit processor based on the advanced Amlogic architecture. The YKR-IPX3-V2 development board delivers a high-performance embedded system solution suitable for diverse application development. Equipped with a quad-core 64-bit processor operating at up to 1.9GHz, it supports 4K decoding and HDR video playback. Featuring extensive connectivity options including HDMI and USB 3.0, it facilitates seamless connection to external devices. It supports dual-band Wi-Fi and Bluetooth 5.0 for stable and fast network communication. Onboard debugging interfaces and extensive development resources enable developers to rapidly customize, develop, and debug applications. The YKR-IPX3-V2 development board is an ideal choice for accelerating embedded system development.
Quad-core 64-bit Cortex-A55 processor
USB 3.0
1GB/2GB/4GB/8GB (LPDDR4/4X)
8GB/32GB/64GB/ 128GB eMMC
Wi-Fi 5
Bluetooth 5.0 with BLE support
4K HD display
Gigabit Ethernet

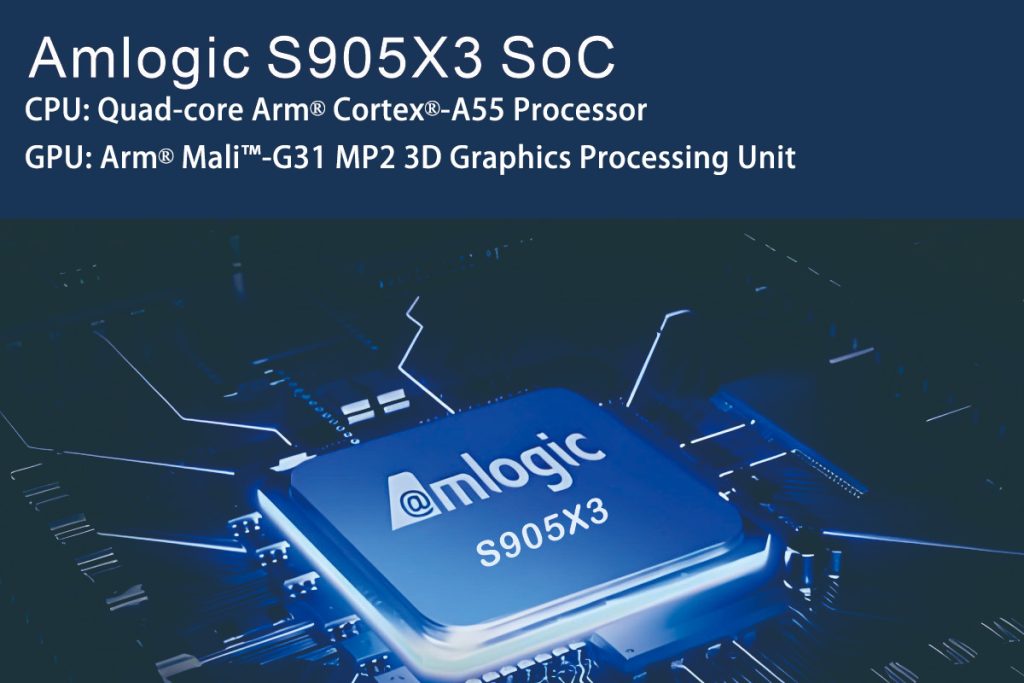

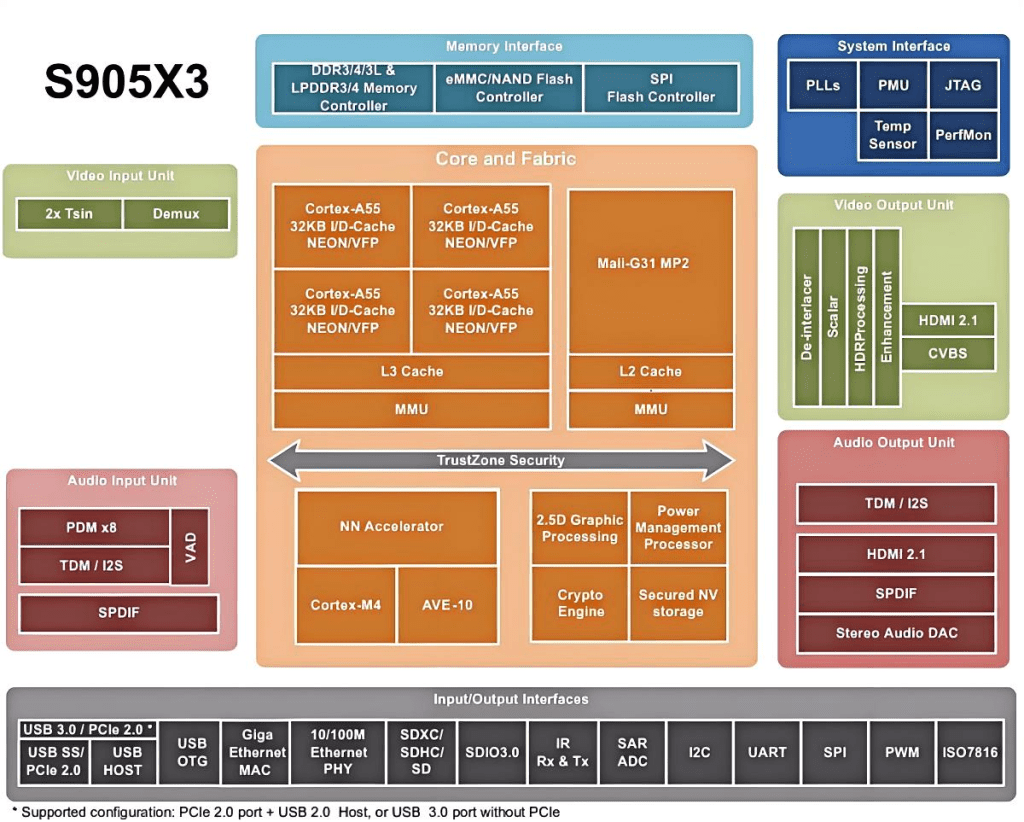

Amlogic S905X3 quad-core Cortex-A55 processor (2.0xGHz). Mali-G31 MP2 GPU with 4 execution engines (650MHz). The BPI-M5 features 4GB LPDDR4 memory and 16GB eMMC flash storage. It provides four USB 3.0 ports, one Gigabit Ethernet port, and one HDMI 2.1 output port for 4K video output.
Powerful CPU Processes

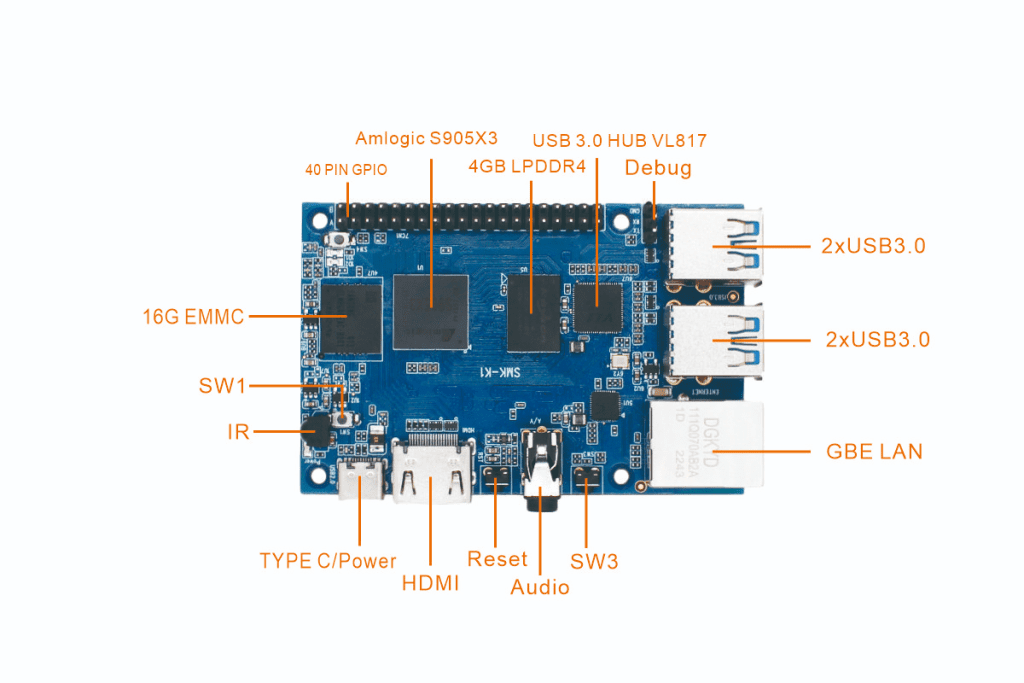

Product Specification:
CPU | Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) |
GPU | Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) |
Memory | 4GB LPDDR4 |
Storage | MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB |
Network | 10/100/1000 Mbit/s Ethernet |
Video Output(s) | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) |
Audio Output(s) | 3.5mm jack and 1 x HDMI digital output |
USB ports | USB 3.0 PORT (x4) |
GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM |
Switches | Reset, Power and U-boot |
LED | Power Status and Activity status |
Power Source | 5 volt @3A via Micro USB (TYPE C) |
Size & Weight | 85x56mm, 48g |
OS | Android and Linux |
