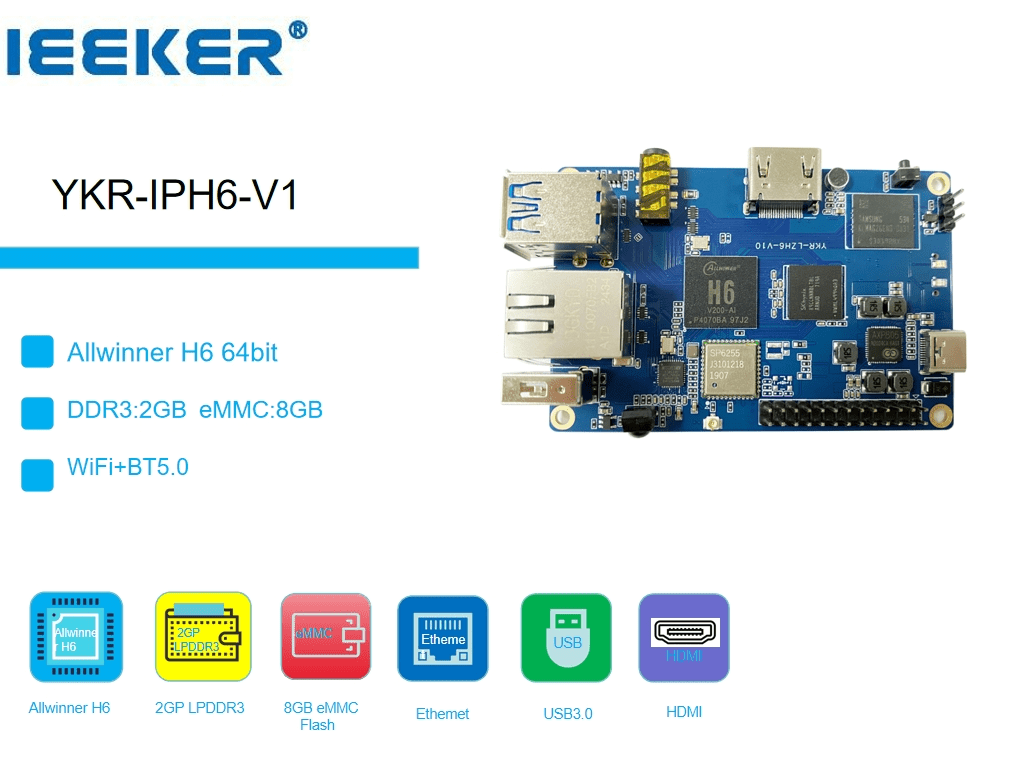

Allwinner H6 Cortex-A53 Quad-Core

CPU	Allwinner H6 Quad-core 64-bit ARM Cortex-A53
CPU Frequency	Up to 1.8GHz
GPU	Mali-T720 Multi-core GPU
Graphics API	OpenGL ES 3.1 / 3.0 / 2.0 / 1.1
	Microsoft DirectX 11 FL9_3
ASTC Support	Adaptive Scalable Texture Compression (ASTC)
Compute Performance	Floating-point performance > 70 GFLOPS
Memory (RAM)	2GB DDR3 (Shared with GPU)
Onboard Storage	TF Card Slot
	8GB eMMC Flash
Operating Systems	Android, Ubuntu, Debian, etc.

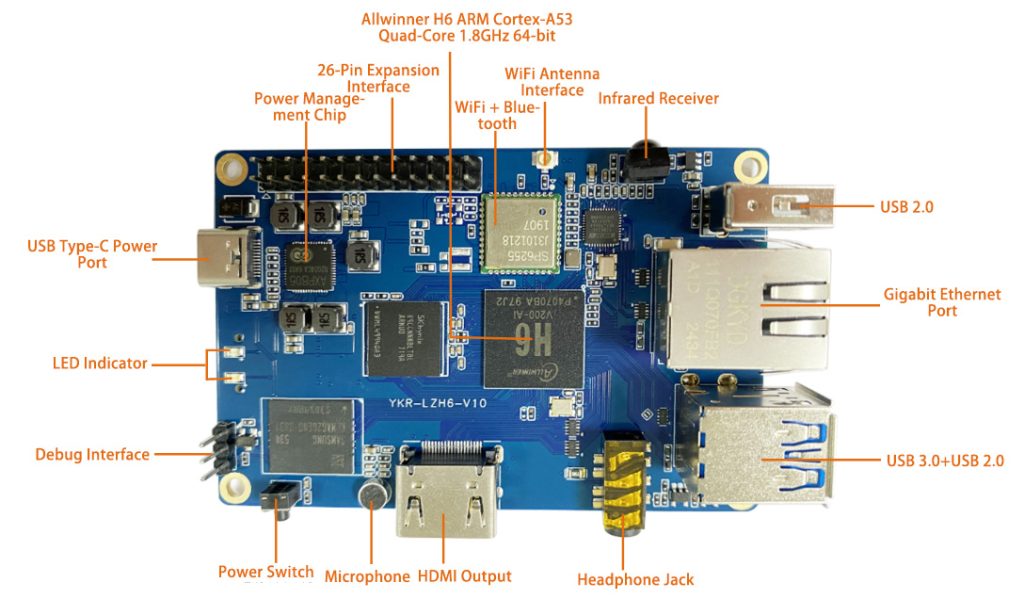

Product Specification:

Item	Specification
CPU	Allwinner H6 Quad-core 64-bit ARM Cortex-A53
CPU Frequency	Up to 1.8GHz
GPU	High-performance multi-core Mali-T720 GPU
Graphics API	OpenGL ES 3.1 / 3.0 / 2.0 / 1.1
	Microsoft DirectX 11 FL9_3
ASTC Support	Adaptive Scalable Texture Compression (ASTC)
Compute Performance	Floating-point performance > 70 GFLOPS
Memory (RAM)	2GB DDR3 (Shared with GPU)
Onboard Storage	TF Card Slot
	8GB eMMC Flash
Ethernet	10/100/1000 Mbps Ethernet
Video Output	HDMI 2.0a
	TV CVBS Output
Audio Output	3.5mm Audio Jack
	Audio over HDMI
Power Supply	5V / 3A via USB Type-C
USB Ports	1 × USB 3.0 Host
	2 × USB 2.0 Host
Low-level Peripherals	26-Pin Header
	Includes 1 × I2C, 1 × SPI, 1 × UART, Multiple GPIOs
Debug Interface	UART-TX, UART-RX, GND
LED Indicators	Power LED and Status LED
Buttons	Power Button (SW4)
Supported OS	Android, Ubuntu, Debian, etc.
Dimensions	85 mm × 55 mm
Weight	43 g
